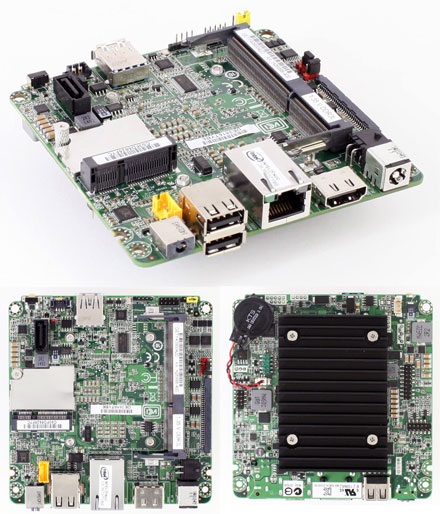

Intel NUC DE3815TYBE Mainboard (Next Unit of Computing, Intel Atom E3815)
• CPU: Intel Atom E3815, 1.46GHz, 512KB Cache, 5W TDP
• RAM: 1x DDR3L SO-DIMM 1.35V, 1066/1333/1600, max. 8GB
• Expansion: 1x Mini-PCIe
• Connectors external: 1x HDMI 1.4a, 1x USB 3.0, 2x USB 2.0, 1x Gb LAN (Intel), 1x Klinke
• Connectors internal: 1x eDP 1.3, 1x VGA, 3x USB 2.0, 1x SATA 6Gb/s, 1x serial
• Power: 1x DC-IN(12-19V) external, 1x DC-Header (12-24V) internal
• Graphics: Intel HD Graphics (IGP)
• Audio: 7.1 Surround via HDMI. Additional external headphone/microphone jack
• Supported OS : Windows 7/8, Linux
• Storage: 4GB eMMC integrated, 1x SATA port
• Remarks: UCFF (4"x4"), All solid capacitors, passively cooled
incl. 19% VAT, plus shipping
In Stock (496 pcs)
