Nanovision UM-720F V2 (7" USB Touchscreen Display, VESA)

Nanovision UM-720F V2 (7" USB Touchscreen Display, <b>VESA</b>)
3D 360° View
  • Displaylink !
  • 800x480 !
  • Touchscreen !
  • VESA-75 !

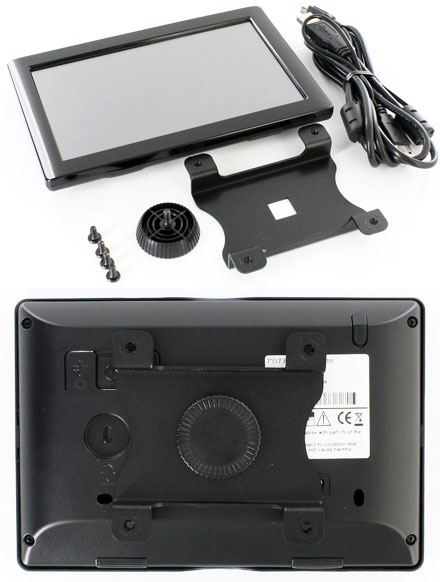

Difference to UM-720S : VESA (75mm) compatible mounting adapter option on display rear side. You can mount the display on any VESA compatible mounting unit.

This TFT monitor is connected to a Windows PC USB connector. The display is working as an additional display which can be added to the main display area on the left, right, upper or lower. Alternatively it can mirror the primary screen. The display can be swiveled in steps of 90°.

In addition, the UM-720F V2 model comes with touchscreen.

Specifications :

System requirements:
- CPU : 1.2Ghz+
- RAM : 512MB RAM+
- USB : min. 1x USB 2.0
[more]

Share

169.95 EUR
incl. 19% VAT, plus shipping
In Stock (12 pcs)

5 von 5 Sternen
31 ratings
Add to cart

Difference to UM-720S : VESA (75mm) compatible mounting adapter option on display rear side. You can mount the display on any VESA compatible mounting unit.

This TFT monitor is connected to a Windows PC USB connector. The display is working as an additional display which can be added to the main display area on the left, right, upper or lower. Alternatively it can mirror the primary screen. The display can be swiveled in steps of 90°.

In addition, the UM-720F V2 model comes with touchscreen.

Specifications :

System requirements:
- CPU : 1.2Ghz+
- RAM : 512MB RAM+
- USB : min. 1x USB 2.0
- HDD : 30MB
- OS : eg. Windows 2000 SP4, Windows XP SP2 (32bit), Windows Vista & 7 & 8(.1) (32bit/64bit)
Notes :
- 3D applicationes (eg. 3D games) can not be displayed.

- How many displays can be connected to a PC at the same time ?
1-2 displays : 1.2Ghz CPU, 512MB RAM
3-5 displays : 1.8Ghz CPU, 1GB RAM
6++ displays : 1.6Ghz Dual-Core CPU, 1GB RAM

- MAC OS Support ?
Display, webcam, etc. : Yes
Touchscreen (MAC OS) : Right now only available with non-free 3-rd party driver.

Touchscreen-Driver for Windows is free and included with the shipment !

Model UM-720F V2(7")
LCD Panel Size 17.78 cm
Display Size 153mm (H) x 93mm (V)
Pixel Pitch 0.1905mm (H) x 0.1905mm (V)
Number of Colors 16.7M
Contrast 400:1
Brightness 350 cd/m²
Input Power USB (DC 5V)
Screen resolution WVGA (800x480)
Power consumption 2W~4.5W
Dimensions 119mm (H) x 180mm (L) x 22mm (W)
Weight ~0,6 kg
Data sheet Download (PDF)
Data sheet [Energy efficiency class] Download (PDF)
Data sheet Print view
Driver (Windows) Download
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 5 von 5 Sternen
Average rating, based on 31 ratings
5 von 5 Sternen from canalguidesystems am 27.10.2016 | | See all my comments

Good price qualty

4 von 5 Sternen from Wayne am 16.08.2013 | | See all my comments

Very easy to configure and set up.
Overall performance: very good.
The sensitivity of the touch panel could be slighly improved.
No audio (speaker).

5 von 5 Sternen from hgfcar am 12.05.2011 | | See all my comments

Der Monitor hat die Erwartungen voll erfüllt. Da der Bildschirm eine hohe Helligkeit hat, ist er sehr gut für den vorgesehenen Einsatzzweck geeignet. Man braucht keine zusätzlichen Blenden. Eine Diplayschutzfolie, welche die Spiegelungen wegnimmt, ist jedoch angebracht.
Das Host-System hat ein Windows 2000 OS, dazu muß man noch Treiber vom Hersteller herunterladen und ein Microsoft Update einspielen. Die Hilfestellung in der Installationssoftware des Herstellers ist vorbildlich, dies enthält genaue Informationen, welche Updates vom Microsoft heruntergeladen werden müssen.

Fast vergessen: der Monitor wird als virtuelles ILS in Helikoptern eingesetzt.

Update from :2012-12-10 17:01
Ein exzellenter Zweimonitor. Insgesamt habe ich schon 4 Stück für meinen Kunden bestellt. Ein Monitor starb leider wohl den Hitzetod, die Monitore sind alle in Helikoptern oberhalb des 'Armaturenbretts' eingebaut, da knallt die Sonne voll drauf. Jetzt ist überall ein Hitzeschild angebracht.
Mein Kunde (Eurocopter) hat die Monitore inzwischen in der Klimaklammer getestet: bei -36°C und Dauerbetrieb des Monitors über mehrere Tage gab es keine Probleme. Weniger als -36°C schafft die Klimakammer nicht...

4 von 5 Sternen from KRE724ZM am 17.07.2012 |

Der Service vor ab war hervorragen. Alle Fragen welche vorab per E-Mail/Telefon zu dem Produkt gestellt wurden, wurden auch prompt und kompetent beantwortet. Innerhalb von zwei Tagen wurde
die Bestellung geliefert. Das Produkt entsprach auch den Erwartungen nur das die Software und Bedienungsanleitung in English war sollte doch vom Lieferanten überdacht werden!
Diese Firma und das Produkt im Verhältnis zum Preis kann ich nur empfehlen!

4 von 5 Sternen from ralf.bugs am 14.01.2012 | | See all my comments

Versand und Lieferung über cartft war zügig und problemlos.
Der MIMO UM-720F ist ein guter 7" Monitor. Besonders praktisch ist die Stromversorgung über USB, weil lediglich ein Kabel zum Betrieb notwendig ist, was ihn zu einem ganz klaren Favoriten beim Betrieb im Auto macht.
Etwas problematisch ist allerding die Arbeit mit Windows, da viele Fenster von XP nicht auf die Auflösung von 800*480 ausgelegt sind und mangels erscheinender Scollleisten ist eine Bedienung nicht immer möglich.
Als Monitor fürs Navi und Multimediasteuerung ist er sehr gut geeignet, um darauf Filme zu sehen ist er allerdings etwas klein und von der Farbdarstellung nicht wirklich optimal.

Update from :2012-06-22 15:14
Ist bereits mein zweiter Monitor. ZUr Bespaßung der Kinder auf Reisen eine klasse Lösung. ICh arbeite zur Zeit daran noch einen dritten zu verbauen um parallen zu den Filmen für die Kinder eine Navigation für den Fahrer zu realisieren.
