- for Intel Core Duo / Core Single CPUs with 533/677 MHz FSB, Mobile Socket 479
- 2x 240-pin DIMM socket (DDR-II 533/677, up to 2GB)
- 1x 44-pin Standard-IDE Port
- 1x PCI-express
- 1x SATA
- 1x Mini-PCI
- 1x Gigabit LAN
- 1x 100Mbit LAN
- Graphics adapter onboard (Intel GMA 950)
- Sound onboard (Realtek ALC662)
- Standard 20pol-ATX power connector
- TV-Out (S-Video + RCA)

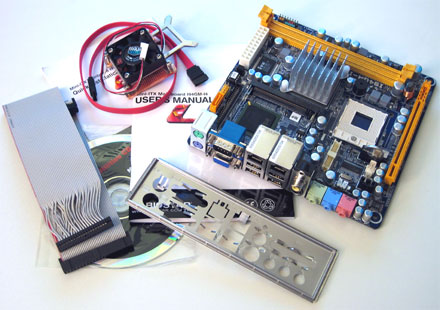

Scope of supply :
- I94GM-I4 Mainboard
- Slim CPU Coolermaster Alu cooler (27W CPU Max.)
- IDE-cable (40 to 44 pin)
- 1x SATA cable
Chipset: Intel 945GM / ICH7M
CPU SUPPORT
- Intel Core 2 Duo
- Intel Core Duo
- Intel Celeron M
MEMORY
- Support Dual DDR2 533/667 MHz
2 x DDR2 DIMM Memory Slot
Max. Supports up to 2GB Memory
EXPANSION SLOT
- 1 x PCI-E Slot
- 1 x Mini-PCI Slot
GRAPHICS
Intel Graphics Media Accelerator 950, On Board Graphic Max. Share Memory Up To 224MB
AUDIO
Realtek ALC662 5.1-Channel HD Audio
LAN
1x Realtek 10/100/1000 Mbit RTL8111B
1x Realtek 10/100 Mbit RTL8101E
SUPER I/O CHIP
ITE IT8718
REAR I/O
- 1 x PS/2 Mouse
- 1 x PS/2 Keyboard
- 4 x USB 2.0 Ports
- 1 x RS-232 Port
- 1 x D-Sub
- 1 x S-Video
- 1 x Composite Video
- 2 x LAN
- 3 x Audio jacks
INTERNAL I/O
- 1 x SATA Connector
- 1 x IDE 44 Pin, 2.0 Pitch
- 1 x USB 2.0 Header
- 1 x Serial Header
- 1 x SP/DIF OUT Header
- 1 x CD-IN Header
- 1 x Front Audio Header
- 1 x LVDS Connector
- 1 x YPbPr Header
- 1 x CIR Header
- 1 x Front Panel Header
- 1 x ATX Power Connector
OS SUPPORT
- Support Windows CE / 2000 / XP
- Support Linux
DIMENSION
170mm x 170mm ( W x L )
Reviews/Awards :
Please
login for creating product ratings.
Your rating:
Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating.
If you want you also can leave a comment.
Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And
you can benefit from reports other customers are giving.
In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters)
on your account. The credit will be substracted automatically on your next order !
We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders).
"Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.
Customer ratings:
![5 von 5 Sternen](http://pca-3.de/carpcimages/CarTFT/img/stars-5-of-5.png)
Average rating, based on 6 ratings
|
Very good motherboard! This board was used with Core2Duo T5300 1,73Ghz CPU about 10 months with perfect result. 4 USB slots on the back, but available 2 more on the board. IMHO, enough! Recommend!
