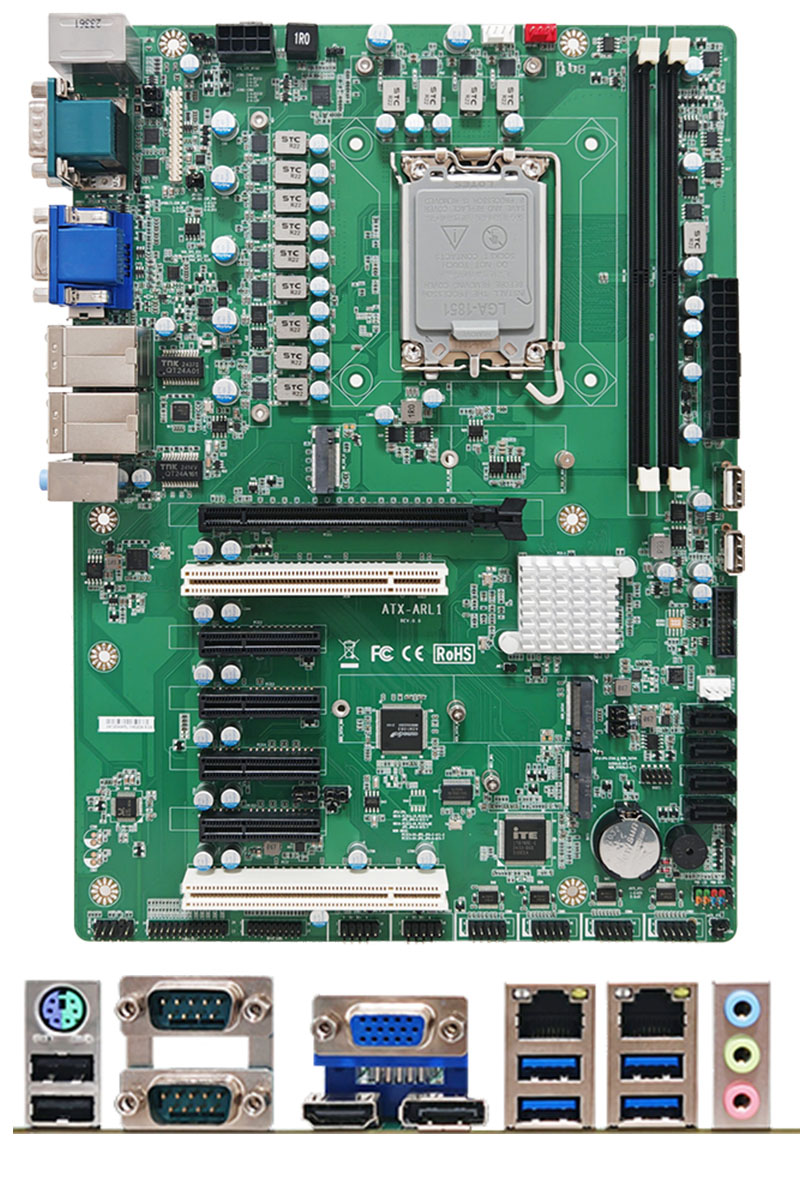

Jetway ATX-ARL1-B860 ATX (Intel B860 Chipset, Socket LGA1851, Arrow Lake-S, 1 x VGA, 1 x HDMI, 1 x DP)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway ATX-ARL1-B860 ATX (Intel B860 Chipset, Socket LGA1851, Arrow Lake-S, 1 x VGA, 1 x HDMI, 1 x DP)
  • Intel Core Ultra Processors (Series 2) !
  • B860 Chipset !
  • 6 x COM, 6 x USB3.2 (Gen.1) !
  • ATX-ARL1-B86002A1 !

  • Powered by Intel® Core™ Ultra processors (Arrow Lake-S) with B860 chipset
  • 2 x DDR5 6400MT/s UDIMM up to 96GB
  • 1 x VGA, 1 x HDMI®, 1 x DP
  • 1 x 2.5GbE LAN, 1 x GbE LAN
  • 6 x COM, 6 x USB3.2 (Gen.1), 6 x USB2.0, 2 x USB2.0 Type-A (Vertical)
  • 1 x M.2 M-key, 2242/2280 (SATA Interface), 1 x M.2 M-key, 2242/2280 (NVMe，PCI-Ex4 Interface), 1 x M.2 E-key, 2230 (CNVi/PCI-Ex1+USB2.0 Interface)
  • 1 x PCI-Ex16 (Gen.4), 2 x PCI-Ex4 (Gen.3), 2 x PCI-Ex1 (Gen.3), 2 x PCI
  • Intel® PTT (fTPM) & TPM 2.0 (dTPM)


Share

RAM :

SSD (M.2 NVME):

OS:

Build/Install:
SYSTEM
MB FORM FACTORATX
CPUIntel® LGA1851 Socket Ultra 9/7/5th Gen Processor (Max. TDP 125W)
CHIPSETIntel® Arrow lake-S B860
MEMORY2 x DDR5 6400MT/s, Dual Channel U-DIMM, up to 96GB
BIOSUEFI
WAKE ON LANYes
WATCHDOG TIMER255 Levels
SECURITYIntel® PTT (Integrated fTPM) & TPM 2.0 (dTPM)
RTC BATTERYLithium Battery
DIMENSION (W X D)305.0 (W) x 220.0 (D) mm (12" x 8.7")
OS SUPPORTWindows® 11 (64bit)
Windows® 10 (64bit)
Linux
POWER
POWER REQUIREMENTATX Power Supply
POWER ON MODEAT / ATX (Default) Mode
CONNECTOR24+8-pin ATX PWR
DISPLAY
GPUIntel® HD Graphics
DP1 x DP2.1 (Max Resolution: 7680x4320@60Hz)
HDMI®1 x HDMI® 2.0 (Max Resolution: 4096 x 2304@60Hz)
VGA1 x VGA (Max Resolution: 1920 x 1080 @60Hz)
MULTIPLE DISPLAYSupport 4 Displays
AUDIO
CODECRealtek ALC897
Line-in1 x Audio Jack for Line-In
Line-out1 x Audio Jack for Line-Out
MIC-in1 x Audio Jack for MIC-In
LAN
ETHERNET1 x RJ45 for Intel® I226-V 2.5GbE
1 x RJ45 for Intel® I219-V GbE
USB PORT
USB4 x USB 3.2 Gen 1
2 x USB 2.0
Internal Header for 2 x USB 3.2 Gen 1
Internal Header for 4 x USB 2.0
Internal USB Type A (Vertical) for 2 x USB 2.0
SERIAL PORT
COM2 x DB-9 for RS-232/422/485
Internal Header for 4 x RS-232
INTERNAL I/O
GPIO16 bit GPIO (5V) Co-lay LPT
SMBUSYes
FAN1 x CPU Fan Header
2 x System Fan Header
FRONT PANELHDD Active LED
Power LED
Power On/Off
Reset
ADDITIONAL1 x Chassis intrusion
1 x AT/ATX Mode Selection
STORAGE
SATA4 x SATA III
EXPANSION
M.21 x M-key 2242/2280 (SATA interface, Co-lay SATA4)
1 x M-key 2242/2280 (PCIe Gen5x4) Support NVMe
1 x E-Key 2230 (USB 2.0/PCIe x1) Support CNVio for Wi-Fi
PCIe1 x PCI-Ex16 (Gen.4) slot
4 x PCI-Ex4 (Gen.4, PCIE2/PCIE3 Interface: PCI-Ex1) slots
2 x PCI
OTHERs
OTHER1 x PS/2
ENVIRONMENT & CERTIFICATION
OPERATING TEMPERATURE0°C ~ 60°C (32°F ~ 140°F)
STORAGE TEMPERATURE-20°C ~ 70°C (-4°F ~ 158°F)
OPERATING HUMIDITY10 ~ 90% relative humidity, non-condensing
CERTIFICATIONCE/FCC Class A
LVD
ESG DECLARATIONEU RoHS
REACH
