Jetway HBJC513F632-72N (Intel Skylake-U i5-7200U)

PRODUCT IS CURRENTLY NOT AVAILABLE !

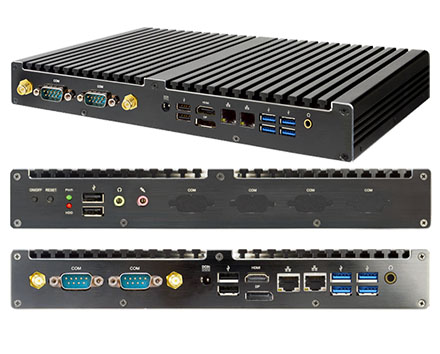

Jetway HBJC513F632-72N (Intel Skylake-U i5-7200U)
  • Intel Kabbylake-U SoC !

  • Intel® 7th Gen. SoC Processors
  • 2 * SO-DIMM Dual CH DDR4 2133MHz up to 32GB
  • 4 * USB2.0, 4 * USB3.0, 2 * COM, 1 * DP, 1 * HDMI, 2 * RJ45, 1 * Line out
  • Mainboard: JNF632N-7200U with i5-7200U SoC CPU



Share

M/B Model – JNF632N-7200U / 3.5” SBC
Part No Non-Wifi Mini PCIe b/g/n Wifi Mini PCIe ac Wifi card
– HBJC513F632-72B (Default) – HBJC513F632W-72B – HBJC513F632Z-72B
BIOS – AMI 64MB SMT Flash ROM
CPU/Chipset – Intel® Kabylake i5-7200U SoC Processor (15W)
Storage – 1 * 2.5” SATAIII 6Gb/s internal drive bay
– 1 * Full-size mSATA/Mini-PCI Express shared slot
Network – 1 * Intel i211AT, 1 * Intel i219LM GbE
– 1 * half-size Mini-PCIe slot (for WiFi expansion)
Rear Panel I/O – 4 * USB 3.0 ports
– 2 * USB 2.0 ports
– 1 * HDMI 1.4 (Max. Resolution: 4096*2160@60Hz)
– 1 * DP1.2 (Max. Resolution: 4096*2304@60Hz)
– 2 * RJ45
– 1 * Line-out
– 2 * COM (COM1 support RS232/422/485)
– 2 * Antenna holes (WiFi only)
– 1 * DC-in Jack
Front Panel I/O – 1 * Power button, 1 * Reset button
– 1 * Power LED, 1 * HDD LED
– 2 * USB 2.0 ports
– 1 * Line-out, 1 * MIC
Power Source – AC-DC Adapter_DC12V_5A_60W
– AC 90~240V input
Compliance – CE, FCC, RoHS, ErP Ready
Temperature – Operating Temperature: 0 ~ 50° C
– Storage Temperature: -20 ~ 85° C
Dimensions – 264 (W) x 199.4 (D) x 38 (H) mm
Packing – Net Weight: 2.4KG
– Gross Weight: 3.4KG
– Color Box dimension: 406 (W) * 148 (D) * 380 (H) mm
OS Support – Windows 10, Linux
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
