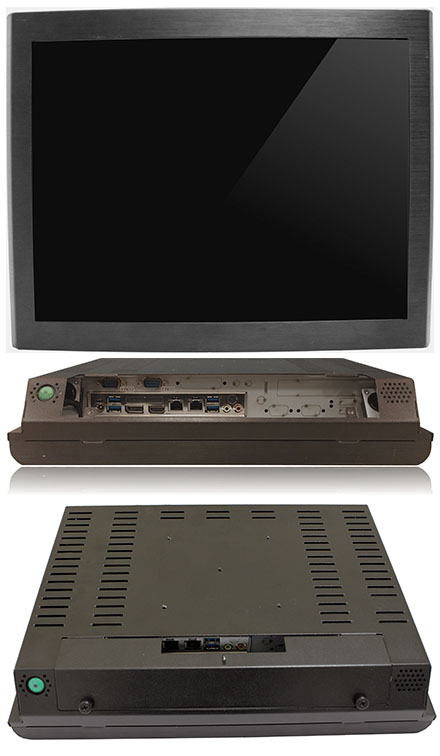

Mitac D150-12SI-Q170-RT [Intel LGA1151 Socket] 15" Panel PC (1024x768, IP65 Front)

Mitac D150-12SI-Q170-RT [Intel LGA1151 Socket] 15" Panel PC (1024x768, IP65 Front)
  • 1024x768 Touchscreen !
  • IP65 Front !
  • Intel KabyLake !
  • 2x LAN, 2x COM !

D150-S is a 15 inch all in one panel pc system with Intel 7th & 6th Core-i based platform for rich performance. For different industrial touch application, it is also flexible to support either resistive touch or capacitive touch solution followed by IP65 protection rating in front.

All of these are aiming to provide the most stable and reliable product solution for different environmental or industrial HMI applications.

  • Industrial-grade 15" TFT LCD with 50,000 hrs backlight lifetime
  • Reliable 5 wire resistive touch control
  • Front panel IP65-rated


918.00 EUR
incl. 19% VAT, plus shipping
In Stock (2 pcs)

Add to cart
Display Type 15" TFT-LCD
Max. Resolution 1024 x 768
Max. Colors 16M (8 bit/color)
Luminance 350 cd/m2
Viewing Angle 160°(H), 145°( V)
LED Backlight lifetime (Hours) 50,000
Type resistive
Touch Screen singel point
Processor 7 / 6th Gen Intel® Kaby Lake / Skylake LGA1151 Socket Processor, TDP Max. 35W
Chipset Intel® Q170 (Support RAID 0 / 1 / 5 / 10)
System Memory DDR4 2133 / 2400MHz / 2 x 260-pin SO-DIMM / Max. 32GB (Non-ECC)
Ethernet Intel® I219-LM Giga LAN + Intel® I211-AT Giga LAN
I/O Port 2 x RS232
2 x RJ45
1 x DisplayPort 1.2 /
1 x DC Jack /
4 x USB 3.0 /
1 x HDMI 1.4 /
1 x Line-out /
1 x Mic-in
Watchdog Timer 1~255 steps by software program
Storage Disk Drive SATA 2.5” HDD/SSD bay x 1
Expansion Slot Mini PCIe Half size (PCIe / USB) / Mini PCIe Full size (PCIe / USB / SATA)
Stereo Speaker 2 x 2W
OS Support 7th Gen Kaby Lake: Windows 10 64bit, Linux (support by request) / 6th Gen Skylake: Windows 7 32 / 64bit
Power Input 12V DC
Power Adapter 84W adapter / DC12V / 7A / AC / DC
Mounting VESA 100 / Stand
Dimension 280 x 355 x 55 mm
Weight 4.3kg
Operating Temperature -20°C ~ 50°C (-4 ~ 122°F)
Storage Temperature -20 ~ 70°C (-4 ~158°F)
Storage Humidity 10% ~ 90% @40°C non-condensing
Vibration Resistance Operating Random vibration Test 5-500Hz, 0.3 Grms@with HDD
Shock Resistance
Operating 50 G peak (3 ms duration)
EMC CE / FCC Class B
Front Panel Protection IP65 Compliant
Data sheet Download (PDF)
Data sheet Print view
Mitac Catalogue Download (PDF)
