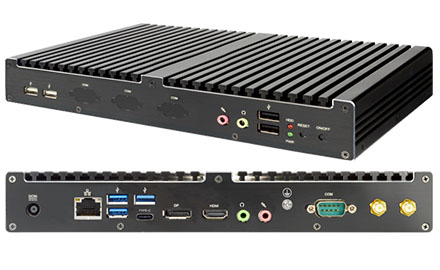

Jetway HBJC511I09-H470-B (Intel LGA1200 Socket 10/11th Gen. Core)

Jetway HBJC511I09-H470-B (Intel LGA1200 Socket 10/11th Gen. Core)
  • Intel LGA1200 !

  • Intel® LGA1200 socket 10/11th Gen Core™ Processors
  • 2* DDR4 2666/2400MHz SO-DIMM up to 64GB
  • 3* USB 3.2 (Type A/Gen2), 1* USB 3.2 (Type C/Gen1), 4* USB2.0, 1* GbE, 1* COM
  • 1* HDMI1.4, 1* DP
  • DC-19V_120W Adapter


Share

589.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks.
Will be ordered for you.
Add to cart
RAM :

SSD (M.2 NVME):

Build/Install:
Dimensions – 264 (W) x 199.4 (D) x 38 (H) mm
MB model – MI09-H470 / Mini ITX (6.7-in * 6.7-in, 170 * 170mm)
Part No Non-Wifi Wifi
– HBJC511I09-H470-B – HBJC511I09-H470-B
CPU/Chipset – Intel® 10/11th LGA 1200 Socket Core i9/i7/i5/i3/Pentium/Celeron Comet Lake-S/Rocket Lake-S Processor (Max:35W)
– Intel® H470 chipset
Notes: When the system runs, CPU will automatically adjust its working clock frequency according to changing workload.
BIOS – AMI SMT Flash ROM
Memory – 2* DDR4 2666/2400MHz SO-DIMM up to 64GB
Network – 1* Intel i219V GbE
– 1* M.2 E-key Slot 2230 (For WiFi/BT Modul, support CNVi)
Storage – 1* 2.5” SATA3 6Gb/s internal drive bay
– 1* M.2 M-Key (2260/2280, SATA/PCIe)
Expansion – 1* M.2-2230 E-Key (for WIFI, Optional)
Rear I/O Port – 3* USB 3.2 (Type A/Gen2)
– 1* USB 3.2 (Type C/Gen1)
– 1* HDMI 1.4 (Max Resolution: 4096×2160@30Hz)
– 1* DP (Max Resolution: 4096×2304@60Hz)
– 1* RJ45 (Intel i219V GbE)
– 1* COM (RS232)
– 1* Line-out, 1* Mic-in
– 2* Antenna holes (WiFi only)
– 1* DC-In Jack
Front I/O Port – 1* Power button, 1* Reset button
– 1* Power LED, 1* HDD LED
– 1* Line-out, 1* MIC
– 4* USB 2.0
Internal I/O Port – 1* SIM Card holder
– 1* M.2-3042 B-Key slot
Power Source – AC 90~240V input / DC19V_120W output
– MI09 MB : 12~19V DC-in
Certification – CE, FCC, RoHS, ErP Ready
Environment – Operating Temperature : 0°C~50°C
– Storage Temperature : -20°C~70°C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
Packing – Net Weight：2.4 KG
– Gross Weight：3.4 KG
– Color Box Dimension：406(W) x 3148(D) x 380(H) mm
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
Datasheet Download (PDF)
