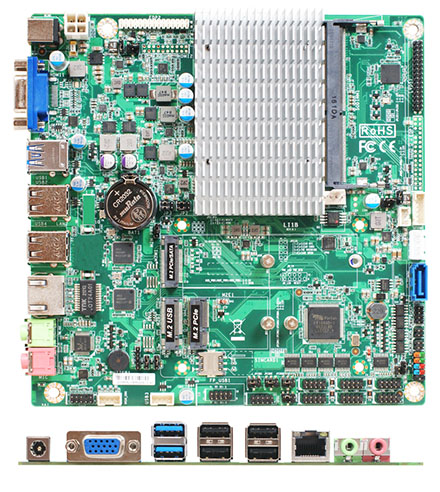

Jetway JLI1BV-0L (Intel Elkhart Lake J6412, 4x USB, 2x LAN, 12V DC-in)

Jetway JLI1BV-0L (Intel Elkhart Lake J6412, 4x USB, 2x LAN, 12V DC-in)
  • J6412 !
  • 2x LAN !
  • Power Onbaord !
  • Thin miniITX !

  • Intel® Elkhart Lake J6412 2.0GHz/QC Core MCP Processor (Turbo 2.6GHz)
  • 1* DDR4 3200MHz up to 32GB
  • Realtek HD Audio
  • 2* Intel® i225V 2.5GbE
  • 1* SATAIII, 1* M.2 (M-key)
  • 1* VGA, 1* eDP, 1* LVDS
  • 2* RS232/422/485, 4* RS232, 2* USB3.1 (Gen. 1), 7* USB2.0
  • 1* M.2 E key Support WIFI/BT Module , 1* M.2 B key Support 4G/5G Module
  • 12V DC-in
  • Thin MINI ITX Form Factor (170 *170 mm)




Share

298.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart
Model – JLI1BV-0L
– JLIBV-0L2 (TPM2.0)
Form Factor – ITX (170 * 170mm)
Processor System – Intel® Elkhart lake J6412 Quad Core MCP SoC Processor
– JLI1BV-00 (Quad Core 2.0GHz/10W, Turbo 2.6GHz)
– AMI 128M Flash ROM
Memory – 1* DDR4 3200MHz SO-DIMM up to 32GB
Storage – 1* SATAIII (6.0 Gb/s)
– 1* M.2 M-key (2242/2280, SATA or NVMe- PCIe x2)
Expansion – 1* M.2 E-key (2230, support WIFI/BT Module)
– 1* M.2 B-key (3042/3052, support 4G/5G Module)
– 1* Nano SIM card slot
Ethernet – 2* Intel® i225V 2.5GbE
Graphics – Intel® HD Graphics, shared memory
– 1* VGA (Max Resolution: 2560×1600@60Hz, Co-lay HDMI)
– 1* LVDS (Max Resolution: 2560×1600@60Hz, Co-lay eDP)
– 1* eDP (Max Resolution: 4096×2304@60Hz, Co-lay HDMI)
– Support Triple Displays
Audio – Realtek HD Audio
– 3W Speaker Amplifier
Watchdog Timer – From Super I/O to drag RESETCON#
– 256 segments (10sec ~ 255min)
Internal I/O – 5* USB2.0
– 2* RS232/422/485
– 4* RS232
– 1* SATAIII, 1* SATA Power
– 3* M.2 (M key + E key + B key)
– 1* GPIO (8 bit, 5V)
– 1* AT mode
– 1* I2C/SMBUS
– 1* FP_ Audio
– 1* Speaker
– 1* TPM2.0 (Option)
– 1* CPU FAN
External I/O – 1* VGA
– 2* RJ45
– 2* USB3.1 (Gen. 1)
– 2* USB2.0
– Line-out
– MIC
– 12V DC-in
Power 12V DC-in, AT/ATX Supported
– AT: Directly PWR on as Power input ready
– ATX: Press Button to PWR on after Power input ready
Compliance – CE, FCC, RoHS, REACH
Temperature – Operating: 0°C ~ 60°C
– Storage: -20°C ~ 70°C
– Humidity: 10% ~ 90% RH @40°C (non-condensing)
OS Support – Windows 10, Linux
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (ARM) Download (PDF)
Jetway Catalog (Mainboards) Download (PDF)
Datasheet Download (PDF)
