|MB Model||– JNF632E-7X00 / 3.5” SBC
– Core Number : i5-7200U / i5-7300U (Default)
|BIOS||– AMI 128Mb SMT Flash ROM|
– Intel® Skylake/Kabylake U Processor (TDP 15W)
Notes : When the system runs, CPU will automatically adjust its working clock frequency according to changing workload.
|Memory||– 2 * SO-DIMM slots DDR4-2133MHz up to 32GB|
– 1 * 2.5” SATA3 6Gb/s internal drive bay (only support 2.5″ HDD with a hight ≤ 10mm)
– 1 * Mini-PCIe (full size, shared with mSATA)
– 2 * Intel® GbE
– 1 * half-size Mini-PCIe slot (for WiFi expansion)

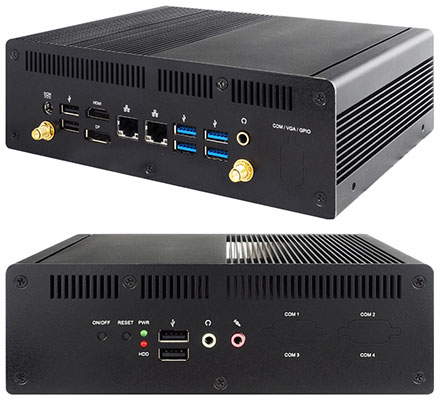

|Rear Panel I/O||
– 2 * USB 2.0 , 4 * USB 3.0
– 1 * HDMI (Max. resolution:4096 x 2160@24Hz)
– 1 * DP (Max. resolution:4096 x 2304@60Hz)
– 2 * RJ45
– 1 * Line-out
– 1 * GPIO (Optional)
– 2 * Antenna holes (Optional)
– 1 * DC-In jack
|Front Panel I/O||
– 1 * Power button, 1 * Reset button
– 1 * Power LED, 1 * HDD LED
– 2 * USB 2.0 ports
– 1 * Line-out, 1 * MIC-in
– 4 * COM
– FSP DC Adapter / DC12V-5A-60W / LV6
– AC 90~240V input
|Compliance||– CE, FCC, LVD, RoHS|
– Vibration test: N.C
– Shock test: N.C
– Operating Temperature: 0 ~ 50° C
– Storage Temperature: -10 ~ 70° C
|Dimensions||– 193 (W) x 142.4 (D) x 62 (H) mm|
– Net Weight: 2.2KG
– Gross Weight: 3.2KG
– Color Box dimension: 250 (W) * 118 (D) * 295 (H) mm
– Skylake CPU support Win7, Win8, Win10.
– HBFDF632(W)-7200-B (Kabylake CPU) only support Win10.
|Warranty||– 2 Year limited warranty|
|Data sheet||Download (PDF)|
|Data sheet||Print view|
|Jetway Catalog (Rackmount)||Download (PDF)|
|Jetway Catalog (Barebones)||Download (PDF)|
