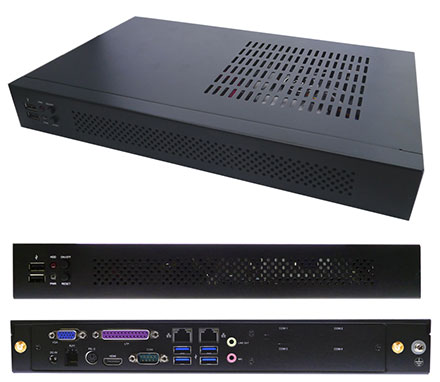

Jetway JBC142F791-3955B (Intel Kabylake)

Jetway JBC142F791-3955B (Intel Kabylake)

  • Intel® Skylake U/Kabylake U CPU, DDR4 up to 32GB, support Max.4K display resolution
  • Intel® Skylake-U/Kabylake-U Processor (TDP 15W)
  • Support DDR4-2133, 2 * SO-DIMM slot, up to 32GB memory
  • 2 * USB2.0, 4 * USB3.0, 1 * COM, 1 * HDMI, 1 * VGA, 2 * RJ45, 1 * RJ11
  • 1 * PS2, 1 * LPT, 1 * MIC, 1 * Line out, 4 * COM (Option)
  • M/B Form Factor : Mini ITX (170x170mm)
  • DC-12V_60W Adapter


Share

498.00 EUR
incl. 19% VAT, plus shipping
Available in 3 weeks

Add to cart
MB Model –JNF791-3855U/3955U Mini ITX
Part No –HBJC142F791-3855B (non-WIFI)
–HBJC142F791W-3855B (WIFI)
–HBJC142F791-3955B (non-WIFI)
–HBJC142F791W-3955B (WIFI)
BIOS –AMI 16MB SMT Flash ROM
CPU/Chipset –Intel® Skylake-U/Kabylake-U Processor (TDP 15W)
Memory –2 * SO-DIMM slots DDR4-2133 up to 32GB
Storage –1 * 2.5” SATA3 6Gb/s internal drive bay
–1 * Full-size mSATA/Mini-PCI Express shared slot
Network –2 * Realtek® 8111H GbE
–1 * Full-size Mini-PCIE slot ( 802.11 b/g/n + BT 4.0 installed in WIFI model / Optional)
Rear Panel I/O –4 * USB 3.0 ports
–1 * HDMI, 1 * VGA
–2 * RJ45
–1 * Line-out, 1 * Mic-in (Realtek ALC662VD)
–1 * COM (RS232/422/485), 4 * COM (RS232/Optional)
–2 * Antenna holes (WiFi model only)
–12V DC-In barrell jack
Front Panel I/O –1 * Power button, 1 * Reset button
–1 * Power LED, 1 * HDD LED
–2 * USB2.0 ports
Power Source –FSP DC Adapter / DC12V-5A-60W / LV6
–AC 90~240V input
Compliance –CE, FCC, LVD, RoHS
Safety –Vibration test: N.C
–Shock test: N.C
Temperature –Operating Temperature: 0~50°C
–Storage Temperature: -10-70°C
Dimensions –330 (W) x 192 (D) x 44 (H) mm
Packing –Net Weight: 2.0KG
–Gross Weight: 3.2KG
–Color Box dimension: 406 (W) * 359 (D) * 148 (H) mm
OS Support –32/64 bit versions of Windows 7, Windows 8.1, Windows 10, Linux
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
