VDB-800S Mini-PCIe GPS (u-blox6 GPS)

PRODUCT IS CURRENTLY NOT AVAILABLE !

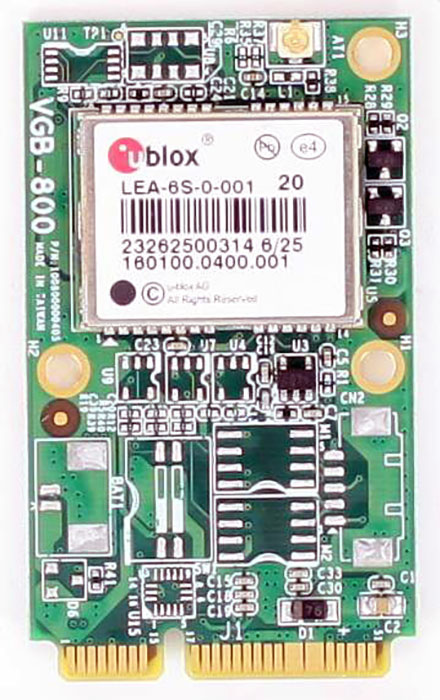

VDB-800S Mini-PCIe GPS (u-blox6 GPS)
  • u-blox6 !

VDB-800S is Embedded u-blox6 GPS Mini PCIe Card

Product Features
- 50-channel u-blox6 Engine with Over 2 Million Effective Correlatorsu
- -146dBm SuperSense® Acquisition and Tracking Sensitivity
- AssistNow Online and Offline A-GPS Services,OMA SUPL Compliant
- 5 Hz Position Update Rate
- Highly Accurate and Reliable Navigation Performance
- Automatic Sensor Calibration and Temperature
- Operating Temperature : -40ºC to 85ºC
- Time To First Fix (TTFF) : <1 sec
- Standard Mini PCIe V1.2 Full-Mini Card (USB 2.0 Interface)



Share

Specifications
Receiver Type
Chipset LEA-6S
Frequency GPS L1, C/A Code, GALILEO L1 Open Service (with upgrade), SBAS : WAAS, EGNOS, MSAS, GAGAN
Channels Supports 50 Channels
Sensitivity
Tracking & Navigation -160dBm
Acquisition -160dBm
Cold Start (Autonomous) -147dBm
Time to First Fix (TTFF)
Cold Start 28 sec
Warm Start 28 sec
Hot Start <1 sec
Aided Start <1 sec
Accuracy
Horizontal Position Autonomous : <2.5m CEP, SBAS : <2.0m CEP
Accuracy of Timepulse Signal RMS 30ns
Max Navigation 99% <60ns
Update Rate 5Hz (Max.)
Dynamic Conditions
Velocity <500 m/s (972 knots)
Acceleration <= 4g
Output Message Format
GPS Protocol NMEA, UBX Binary, GGA, GLL, GSA, GSV, RMC, VTG, TXT
Multipath Suppression
Type Intelligent multipath detection and suppression
A-GPS
Type Supports AssistNow® Online and Offline, OMA SUPL Compliant
Environmental Characteristics
Operating Temp. -40ºC to +85ºC
Storage Temp. -40ºC to +85ºC
Peak Supply Current Max=150mA
Max Performance Acquisition =74mA
Eco Mode Tracking = 43mA
Power Input 3.3V +-10% VDC input
Dimensions 51 x 30 (mm)
Data sheet Download (PDF)
Data sheet Print view
Driver (Windows) Download
