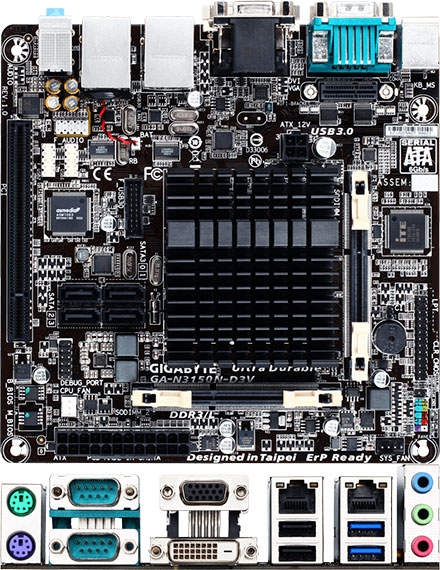

Gigabyte GA-N3150N-D3V (Intel Celeron N3150 Braswell 2x1.6Ghz, 4x SATA)

PRODUCT IS CURRENTLY NOT AVAILABLE !

3D 360° View

Built-in Intel^® Celeron™ N3150 (1.6 GHz) quad-core processor
GIGABYTE Ultra Durable™ Technology
Dual channel DDR3/-L SO-DIMM slot support
All Solid Capacitors with Humidity Protection New Glass Fabric PCB design
Dual GbE LAN with high ESD Protection
Extra two SATA 6Gb/s interfaces for more system storage connectivity
High Quality Audio Capacitors
PCI interface for wide-range expansion card selections
M.2 PCIe expansion slot supports wireless networking cards

CPU	Intel Celeron N3150 2x1.6Ghz
Graphics	Intel GMA
Formfactor	ITX (17x17cm)
RAM	2x DDR-III
Audio	Realtek ALC887 7.1
Base	Intel ITX

USB	6x USB 2.0, 4x USB3.0
Firewire	--
IDE/SATA	4x SATA 6Gb/s
LAN	2x 10/100/1000
Parallel	1x
Serial	2x

yes	TV-Out
yes	PCI
no	Mini-PCI
no	IDE
no	DVI
yes	800x480 Resolution

no	Passive-Cooling
no	PCI-Express
no	PCMCIA
yes	SATA
no	CPU changeable
no	Compact Flash

CPU	Built in with an Intel^® Quad-Core Celeron^® N3150 SoC (1.6 GHz) * Do not disassemble the onboard SoC and the heatsinks by yourself to avoid damage to these components. 2 MB Cache
Memory	2 x DDR3 SO-DIMM sockets supporting up to 8 GB of system memory * Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed. Dual channel memory architecture Support for DDR3/DDR3L 1600/1333 MHz memory modules * Due to an SoC limitation, if a 1333 MHz memory is installed, it will be downgraded to 1066 MHz. Support for non-ECC memory modules (Please refer "Memory Support List" for more information.)
Onboard Graphics	Integrated in the SoC: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. Maximum shared memory of 512 MB
Audio	Realtek^® ALC887 codec High Definition Audio 2/4/5.1/7.1-channel * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN	2 x Realtek^® GbE LAN chips (10/100/1000 Mbit)
Expansion Slots	1 x PCI slot 1 x M.2 Socket 1 connector for the wireless communication module (M2_WIFI)
Storage Interface	SoC: 2 x SATA 6Gb/s connectors (SATA 3 0/1) ASMedia^® ASM1061 chip: 2 x SATA 6Gb/s connectors (SATA 3 2/3)Š
USB	SoC: 4 x USB 3.0/2.0 port (2 ports on the back panel, 2 ports available through the internal USB header) SoC+2 x GENESYS LOGIC USB 2.0 Hubs: 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	1 x 24-pin ATX main power connector 1 x 4-pin ATX 12V power connector 4 x SATA 6Gb/s connectors 1 x CPU fan header 1 x system fan header 1 x front panel header 1 x front panel audio header 1 x USB 3.0/2.0 header 2 x USB 2.0/1.1 headers 1 x parallel port header 1 x Clear CMOS jumper 1 x chassis intrusion header
Back Panel Connectors	1 x PS/2 mouse port 1 x PS/2 Keyboard port 2 x serial ports 1 x D-Sub port 1 x DVI-D port 2 x USB 3.0/2.0 ports 2 x USB 2.0/1.1 ports 2 x RJ-45 ports 3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller	iTE^® I/O Controller Chip
H/W Monitoring	System voltage detection CPU/System temperature detection CPU/System fan speed detection CPU/System fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.
BIOS	2 x 64 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS™ PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for Xpress Install Support for @BIOS Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
Bundle Software	Norton^® Internet Security (OEM version)
Operating System	Support for Windows 10 32-bit/64-bit Support for Windows 8.1 64-bit Support for Windows 7 32-bit/64-bit * Please download the "Windows USB Installation Tool" from GIGABYTE's website and install it before installing Windows 7.
Form Factor	Mini-ITX Form Factor; 17.0cm x 17.0cm
Remark	Due to different Linux support condition provided by chipset vendors, please download Linux driver from chipset vendors' website or 3rd party website.Most hardware/software vendors may no longer offer drivers to support Win9X/ME/2000/XP SP1/SP2. If drivers are available from the vendors, we will update them on the GIGABYTE website.

Data sheet	Download (PDF)
Data sheet	Print view
