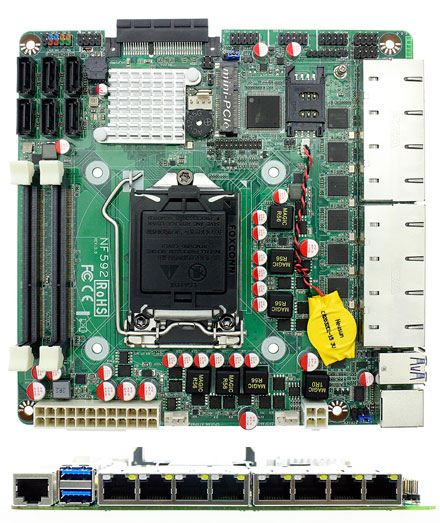

Jetway NF592-Q170 (Intel Q170 Express)

Jetway NF592-Q170 (Intel Q170 Express)

  • Intel® Q170 Express Chipset
  • Supports Intel LGA 1151 Socket Core™ i3, i5, i7 & Pentium Processors
  • Supports Dual Channel DDR3L 1600 MHz, 2 x SO-DIMM, up to 16GB system memory
  • 7 * Intel i211AT & 1 * i219LM Gigabit LAN
  • Support Intel vPro, Active Management Technology ( iAMT 11.0)
  • Side PCI Express x4 Slot
  • 6-ports SATA III 6Gb/s support RAID 0, 1, 5, 10
  • 3G module with SIM card slot
  • 1 * internal HDMI port
  • 2 * USB 3.0, 4 x USB 2.0
  • 1 * mini-PCIe, 1 x PCIex4
  • 1 * Onboard TPM (option)


Share

398.00 EUR
incl. 19% VAT, plus shipping
In Stock (1 pcs)

Add to cart
Form Factor
Dimensions - Thin Mini-ITX (6.7-in x 6.7-in, 170 x 170mm)
 Processor System
CPU - Intel® LGA 1151 Socket Core i7/i5/i3/Pentium Processor
- Supports Hyper-Threading Technology
Core Number - (By CPU)
Max Speed - (By CPU)
L2 Cache - (By CPU)
Chipset - Intel Q170 Express chipset
BIOS - AMI 128Mb SMT Flash ROM
 Expansion Slot
Mini-PCIe - 1 (full size)
mSATA - 0
PCIe - 1 (x4)
SIM - 1
 Memory
Technology - Dual Channel DDR3L 1600 MHz SDRAM
Max. - 16GB
Socket - 2 x SO-DIMM
 Graphics
Controller - (by CPU)
VRAM - Shared Memory
VGA - 0
LVDS - 0
HDMI - 1 (Internal)
MultiDisplay - No
 Ethernet
Ethernet - 10/100/1000 Mbps
Controller - GbE LAN: Intel i211AT * 7 & i219LM * 1
Connector - 8 x RJ 45
 SATA
Max Data Transfer Rate - 6 x SATAIII (6.0Gb/s)
 Rear I/O
VGA - 0
HDMI - 0
Ethernet - 8
USB - 2 x USB 3.0
Audio - 0
Serial - 1 x RS-232
PS2 - 0
DC-input - 0
 Internal Connector
USB - 4 x USB 2.0
LVDS / inverter - 0
Serial - 0
SATA - 6
mPCIe - 1
mSATA - 0
Chassis intrusion - 1 (via 12pin header)
PS/2 - 1
Audio Header - 0
 Watchdog Timer
Output - From Super I/O to drag RESETCON#
Interval - 256 segments, 0,1,2…255sec/min
 Power Requirements
Input PWR - ATX PWR (4+24 pin)
Power On AT/ATX Supported
- AT : Directly PWR on as Power input ready
- ATX: Press Button to PWR on after Power input ready
Certifications
Certifications - CE, FCC, RoHS, REACH
 Environment
Temperature - Operating: 0°C – 60°C
- Storage: -20°C – 85°C
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (ARM) Download (PDF)
Jetway Catalog (Mainboards) Download (PDF)
