CTFPND-8 (7" Android TabletPC/PND, Waterproof IP67, Ruggedized, 1.2Ghz Quad CPU/1GB RAM, GPS/WLAN/BT/3G)

PRODUCT IS CURRENTLY NOT AVAILABLE !
CTFPND-8 (7" Android TabletPC/PND, Waterproof IP67, Ruggedized, 1.2Ghz Quad CPU/1GB RAM, GPS/WLAN/BT/3G)
3D 360° View
  • Android Tablet !
  • Water Resistant !
  • Drop Proof !
  • High Performance !

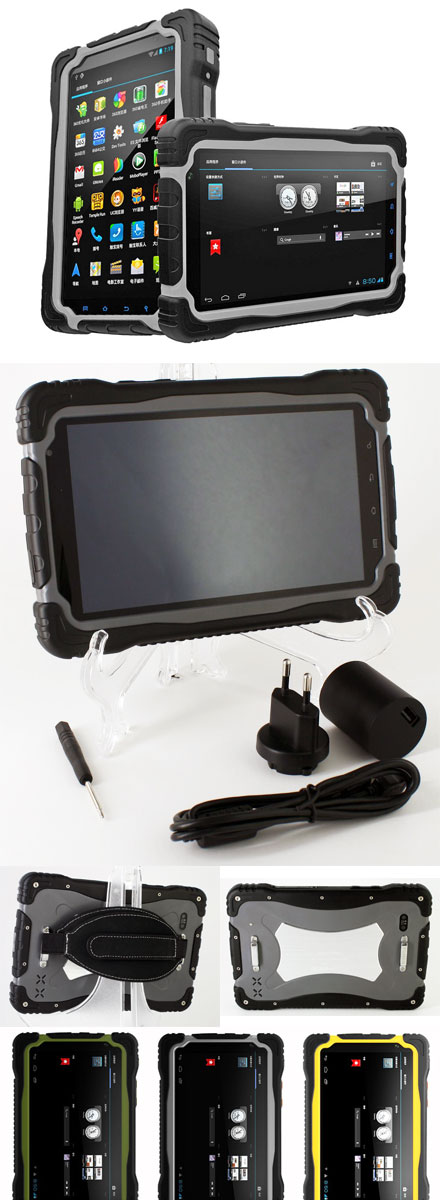

Introducing the new 7” capacitive multi touch display water resistant media tablet from CarTFT. CTFPND-8 is rugged design with IP67 rating whilst also being drop proof. With its detailed industrial and mechanical design, the CTFPND-8 keeps the high performance media tablet in a fashionable and durable housing which is great for outdoor activities. For a better audio and video experience, CTFPND-8 allows users to experience high definition (HD) content on the device.

● High performance media tablet with rugged design with IP67 rating
● Drop proof of 1M
● Dual Cameras
● Speakers for high quality audio playback
● 7&r
[more]

Share

Introducing the new 7” capacitive multi touch display water resistant media tablet from CarTFT. CTFPND-8 is rugged design with IP67 rating whilst also being drop proof. With its detailed industrial and mechanical design, the CTFPND-8 keeps the high performance media tablet in a fashionable and durable housing which is great for outdoor activities. For a better audio and video experience, CTFPND-8 allows users to experience high definition (HD) content on the device.

● High performance media tablet with rugged design with IP67 rating
● Drop proof of 1M
● Dual Cameras
● Speakers for high quality audio playback
● 7” capacitive multi touch screen tablet for great mobility
● True HD 1080P Video Playback & Output
● High capacity battery for an entire days use
● Android 4.2.2 support
● GPS/WLAN/BT/3G !

If you have a project with serious size and are able to sign a NDA we can provide Androis-OS-system builder kit for this device which enables you to create your own Android OS image (eg. own boot logo, own preinstalled apps and settings, etc...) !

Hardware
Dimension 200 x 135 x 20.7 mm
Weight from 615 g
Protection Level 1M drop proof & rugged design with IP67 rating
CPU Processor Speed MTK6589 1.2G Hz x4 Cortex A7 Quad Core
Power VR SGX544 MP2
OS Android 4.2.2
Memory 1 GB
Storage 4 GB ROM EMCP
Memory Slot MicroSD (max. 32GB)
GPS Chipset Built-In
Color Display 7" TFT LCD with Multi Capacitive Touch Screen
Panel Resolution & Brightness 1024 x 600 Pixels & 400nits
Battery Type Rechargeable Lithium Type
Battery Capacity 11000mAh
Speaker Yes
Accelerometer
Yes
Compass Yes
Cameras 8.0 Megapixels (rear side)
2.0 Megapixels (front side)
Wireless Interface WLAN 802.11b/g/n
Bluetooth 4.0
GSM:850/900/1800/1900MHZ,3G WCDMA 850/1900mhz
I/O ports Type A USB Host
Mini USB 2.0
3.5mm Headphone with Mic-in
Build-in Microphone
MicroSD Reader
Environment Shock-proof : 1-19Hz/1.0mm ;19-200Hz/1.0g
Drop-proof : MIL-STD-810G/Method516.6/Procedure IV
Dust/Water proof : Class 6
Soundness : MTBF>50000h;MTTR<0.5h
Operating ambient temperature: -20° to 60°C
Nonoperating temperature: -40° to 80°C
Relative humidity: 5% to 95% noncondensing
Maximum operating altitude: 15,000 feet (4500 m)
Scope of supply - CTFPND-8 Android PND (Color gray. Colors green/orange available with 100 minimum order qty.)
- Quick start Manual
- USB cable
- AC USB power adapter
Data sheet Download (PDF)
Data sheet Print view
Specifications Download (PDF)
Developer Notes Download
