Jetway JBC372F36W-2600-B (Intel CedarTrail-D)

PRODUCT IS CURRENTLY NOT AVAILABLE !

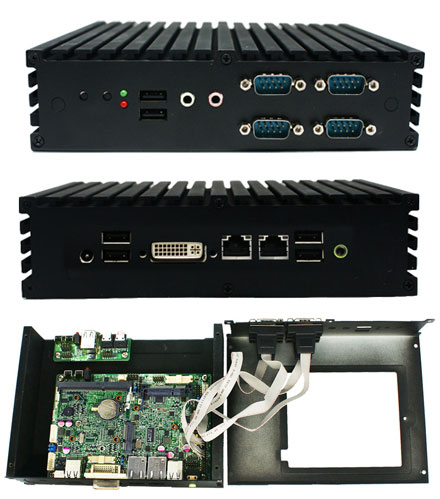

Jetway JBC372F36W-2600-B (Intel CedarTrail-D)

  • INTEL® Cedar Trail-M Processor N2600 + NM10 Chipset
  • Support 1 * DDR3 800MHz Single CH up to 4GB
  • Support DirectX 9 Graphics up to 640MHz
  • Support 1 * Serial ATAII (3Gb/s) Devices
  • Support Dual Gigabit LAN
  • Support DVI-I Output
  • Equipped with 802.11 b/g/n WiFi card & Internal Antenna (JBC372F36W-2600-B only)
  • Support 4 * COM ports
  • Support 2.5" SATA HDD
  • Support Mini PCI-E socket
  • Support CFast card socket
  • Provides Wall mount bracket & VESA mount (option)


Share

RAM :

SSD (2.5"):

Build/Install:
Model No   JBC372F36-2600-B / JBC372F36W-2600-B
Motherboard Specification
CPU INTEL® Cedar Trail-M Processor N2600 (1.6GHz)
Chipset INTEL®NM10 Express chipset
Memory 1 * DDR3 800MHz Single CH SO-DIMM up to 4GB
Expansion Slots 1 * Mini PCI-E
LAN 2 * Realtek RTL8111EVL PCI-E Gigabit Ethernet LAN
Audio Realtek ALC662 HD Audio CODEC with 4-Channel
Storage  1* Serial ATA2 3Gb/s connector
1 * CFast card socket
BIOS AMI 16MB SMT Flash ROM
Form Factor 3.5” SBC (148mm x 102mm)。
Barebone Specification
Product size 180 (W) *142 (D) * 48 (H) mm
Specs Devices 1 x 2.5”HDD Drive Bay (Only support SATA 2.5”HDD)
Colors Black
Front I/O Port 1 * Power button & 1 * Reset button
1 * Line-OUT & 1 * MIC jack
2 * USB 2.0 ports
4 * COM ports
2 * Antenna holes
Rear I/O Port 4 * USB 2.0 ports                 1 * 12V DC jack
2 * RJ-45 port(Gigabit LAN)         1 * Line-out port & 1 * DVI-I port
2 * Antenna holes                  1 * VGA port Reserved
Power supply +12V DC-IN Power
Accessory 60W AC-DC Adapter x 1       Power Cord x 1
CD x 1                      Manual x 1
 DVI-I to CRT Converter x 1     WI-FI antenna * 1（JBC372F36W –2600-B only）
Wall Mount Bracket x 2        LCD VESA Mount Bracket （optional）x 1
Application Kiosk, Digital Signage, Gaming machine, Set Top Box, Thin Client, Car PC Application,  Factory Automation & Embedded Fanless application
Packing Color Box Dimension：417(W) x 137(D) x 296(H)mm
Gross Weight：2.6KG            Net Weight：2.1KG
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (Rackmount) Download (PDF)
Jetway Catalog (Barebones) Download (PDF)
