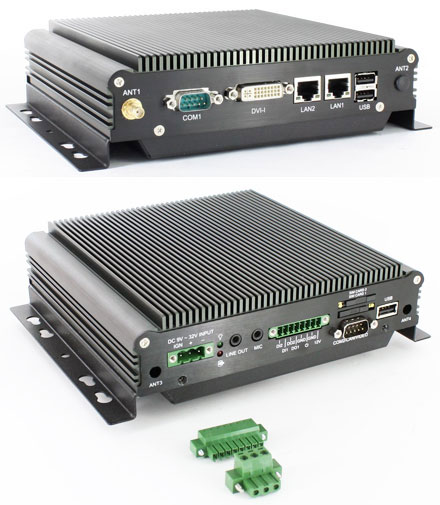

FleetPC-4-B Car-PC (Intel Atom 2x1.86Ghz, 2GB RAM, Autostart-Controller, 9-32V Automotive PSU, GPS) [FANLESS]

This MiniPC was especially designed for fleet applications. The Car-PC can be connected directly to the car battery (12V/24V). Based on ignition plus, the PC will start and shutdown.

For a full PC you need in addition :
- 2.5" HDD/SSD or CompactFlash

The PC is completely fanless and is equipped with an Intel Atom (D2550) 2x1.86GHz CPU and 2GB RAM.

Available additional modules:
The PC comes with 4x antenna-output and 3x Mini-PCIe slots (1x occupied by GPS module).
We recommend these modules:
- HSPA / UMTS / EDGE Mini-PCIe Modem + GPS Combi card (Sierra Gobi2000)<
[more]

Share

569.00 EUR
incl. 19% VAT, plus shipping
In Stock (more than 20 pcs)

To cart Configurator

This MiniPC was especially designed for fleet applications. The Car-PC can be connected directly to the car battery (12V/24V). Based on ignition plus, the PC will start and shutdown.

For a full PC you need in addition :
- 2.5" HDD/SSD or CompactFlash

The PC is completely fanless and is equipped with an Intel Atom (D2550) 2x1.86GHz CPU and 2GB RAM.

Available additional modules:
The PC comes with 4x antenna-output and 3x Mini-PCIe slots (1x occupied by GPS module).
We recommend these modules:
- HSPA / UMTS / EDGE Mini-PCIe Modem + GPS Combi card (Sierra Gobi2000)
- Wireless LAN / Bluetooth Mini-PCI Express [Qcom Combo]

Features :
- Fanless
- Intel Atom D2550 Mobile CPU
- Integrated, intelligent Automotive power supply
- 2x RS232
- GPS (ublox 6 with G-sensor)
- 2x Gigabit LAN
- DVI-I
- Watchdog
- Prepared for GPS, WLAN, GSM/GPRS with ext. antennas
- 2 x DI / 2 x DO with Relay 12V / 100mA
- Vibration/shock tested

For FleetPC-4-B we offer an direct connector cable for our TFT-dispays.

Dimensions / Weight 182mm W x 167.6mm D x 52mm H, 1.4kg
CPU Intel Atom™ D2550 2x1.86GHz Processor
Chipset / FSB Intel NM10
RAM 1x SO-DDR-3 RAM (up to 4GB) [2GB RAM included]
Graphics Intel GMA 3650
GPS VDB-800SG (ublox 6 with G-sensor)
Expansion - 3x Mini-PCIe
OS Support Windows XP Home/Pro/Embedded, Windows 7, Linux
Vibration & Shock MIL-STD-810F
Operating temperature -40~70°C (with SSD)
Certification CE, FCC, eMark (2009/19/EC, CISPR 25:2008, ISO 7637-2:2004)
I/O - 2x Gigabit LAN
- 2x RS232 (COM1 with RS-232/422/485)
- 3x USB2.0
- GPIO port (2in, 2out, with Relay 12V/100mA)
- Mic-In, SPK Out
- 1x DVI-D (for DVI-D and VGA)
- 4x SMA Antenna hole (for eg. GPS, GSM/GPRS/3G, WLAN, Bluetooth)
Drive bays 1 x 2.5" SATA HDD/SSD drive bay
Power supply 9~32V DC PSU included
- Power off Delay Time Setting by Software, Default 5min
- Backup Battery Kit (optional)
Lieferumfang - FleetPC-4-B PC mit Intel Atom D2550 (2x1.86Ghz), 2GB RAM, Halterung
- 1x Pigtail + Antenne für GPS
Data sheet Download (PDF)
Data sheet Print view
Device Specification Download (PDF)
API Guide Download
Manual [EN] Download
Drivers (Windows) Download
Drivers (GPS, ublox) Download
Driver (800x480/1024x600) Download
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 3 von 5 Sternen
Average rating, based on 1 ratings
3 von 5 Sternen from andreas.zimmermann@arcutronix. am 14.03.2017 | | See all my comments

Leider sind 2 der mPCI-Steckplätze nur eingeschränkt nutzbar. Dies sind keine vollwertigen PCI-Slots und können somit beschränkt zum Einsatz von PCI-Karten eingesetzt werden.

Modem compatibility
Compatible with Mobile partner or network connection
- Windows 7 [32/64bit]: ME909u-521, MU609, EM770W, EM820W, MU709s-2

Assignment of Antenna-Connection
ANT 1 = GPS (Please connect the included GPS Antenna to this Connector)

-- If you order additional to the System WLAN/Bluetooth or 3G/UMTS/LTE Device we will assemble the Antenna-Connectors as follow: --

ANT 2 = 3G/LTE/UMTS
ANT 3 + 4 = BT/WLAN
power consumption
tested with SSD, Windows 7 and 84W AC Adapter
Standby: 2,8W
Systemboot: 19,5W
Idle: 14,2W
full load: 22,8W

Intel Cedar Trail chipset only supports Windows 7 - 32 bit
Intel has not released graphics card driver for Windows 64 bit. It is recommended installing Windows 7 - 32bit.
