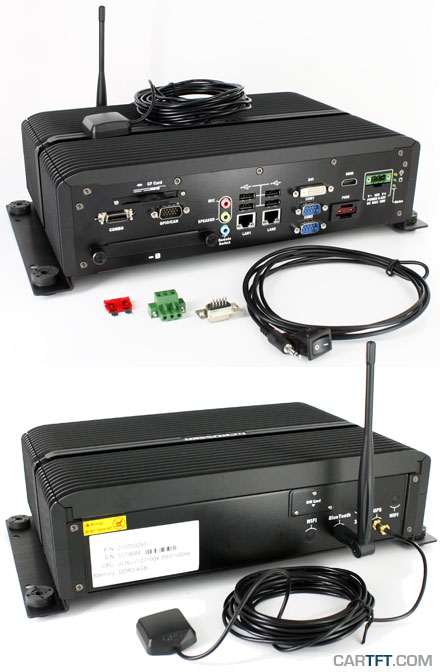

FleetPC-7 Car-PC (Intel Core i7 2710QE, 2GB RAM, Autostart-Controller, 9-32V Automotive PSU, GPS, BT, CAN-BUS, 2x LAN) [FANLESS]

PRODUCT IS CURRENTLY NOT AVAILABLE !
FleetPC-7 Car-PC (Intel Core i7 2710QE, 2GB RAM, Autostart-Controller, 9-32V Automotive PSU, GPS, BT, CAN-BUS, 2x LAN) [<b>FANLESS</b>]

This Car-PC was especially designed for fleet applications. The Car-PC can be connected directly to the car battery (12V/24V). Based on ignition plus, the PC will start and shutdown.

For a full PC you need in addition :
- 2.5" HDD/SSD or CompactFlash

The PC is completely fanless and is equipped with an Intel Core i7 2710QE CPU and 2GB RAM.

The system can be connected directly to CarTFT-CTF-displays with AIO-connector. One single connector for VGA, USB (Touchscreen), Audio and Power.

Project orders:
The system also is available with other CPUs (eg. i5 2510E / Celeron B810 /...). And you can get 8GB RAM. The syst
[more]

Share

This Car-PC was especially designed for fleet applications. The Car-PC can be connected directly to the car battery (12V/24V). Based on ignition plus, the PC will start and shutdown.

For a full PC you need in addition :
- 2.5" HDD/SSD or CompactFlash

The PC is completely fanless and is equipped with an Intel Core i7 2710QE CPU and 2GB RAM.

The system can be connected directly to CarTFT-CTF-displays with AIO-connector. One single connector for VGA, USB (Touchscreen), Audio and Power.

Project orders:
The system also is available with other CPUs (eg. i5 2510E / Celeron B810 /...). And you can get 8GB RAM. The system also can be shipped without GPS, WLAN and/or BT option. Contact us !

Features :
- Fanless
- CAN 2.0A/2.0B Interface
- 1-Wire i-Button interface for Driver ID and Sensors
- 4 x Digital Inputs and 4 Digital Outputs
- VGA/HDMI/DVI Dual Independent Video Outputs
- External Removable Anti-Vibration/Shock Disk Bay and CF socket
- Internal 3.5G/UMTS module (Optional, 2x Mini-PCIe slot available)
- Combo connector to simplify touch monitor installation (compatible with CarTFT CTF-Series displays with AIO-connector)




Dimensions / Weight 310mm x 195mm x 80mm, 6kg
CPU Intel Core i7 2710QE / i5 2510E / Celeron B810 [Intel i7 2710QE included]
Chipset / FSB Intel HM65
RAM 2x SO-DDR-3 RAM (up to 8GB) [2GB RAM included]
Audio Audio Codec (Line-out & MIC)
Graphics Integrated within HM65
Video Memory : DVMT 4.0
Video Interface : 1x HDMI(A), 1x DVI-D, 1x CarTFT (VGA/USB/Audio/Power)
Expansion - 2x Mini-PCIe slot (Full-Height)
OS Support Windows XP, Windows 7, Fedora 14, Ubuntu 10
Vibration IEC 60068-2-64, 5~500Hz, 3GRMS(CF/SSD), Operating with SSD
Shock IEC 60068-2-27, 50G 500m/s2 11MS, Operating with SSD
Operating temperature -20~60°C
Certification CE, FCC class B, E-Mark
I/O - 2x LAN (Intel GbE)
- 6x USB2.0 (4x External, 2x JST Header)
- 2x RS232 (1x External, 1x Header)
- 1x RS232/422/485 (External, Switch selectable)
- 8bit GPIO (4 in, 4 out)
- Mic-In, SPK Out
- 1x Remote power control
- 1x 1-Wire interface for driver ID and sensors
- 15A Fuse for 12V, 0.5A for 24V
- 1x SIM card slot
- 5x Antenna hole (Preinstalled : 1x SMA GPS, 1x SMA BT)
Drive bays 1 x Anti-Shock 2.5" HDD Disk bay (SATA)
1 x External CF slot (Type I/II)
Integrated Modules Bluetooth : Bluetooth 2.1+EDR USB Module QBTM400-01(V7)
GPS : UBLOX5 GPS Module (G5020-1 V1.0)
Power supply 9~32V DC PSU included (90W max)
- Ignition or ignition and remote switch
- Software Programmable On/OFF delay time
- Programmable Low Voltage Input threshold for automatically shut down
Notes The system has Torax TS10 safety screws.
Scope of supply - FleetPC-7 PC with Intel Core i7 2710QE, 2GB RAM, mounting
- Remote switch cable
- Replacement fuse for 24V-operation
- GPS and BT antennas
Data sheet Download (PDF)
Data sheet Print view
Device Specification Download (PDF)
Manual [EN] Download
Drivers (Windows/Linux) Download
