| Model No:
 |
JBC200C85-350-B , JBC200C85-35W-B
 |
|
Motherboard Specification
 |
|
CPU
 |
Support AMD Zacate E350 Dual core 1.6GHz APU
 |
|
Chipset
 |
AMD Brazos Zacate + Hudson D1 Chipset
 |
|
Memory
 |
2 * SODIMM Sockets for un-buffered Single Channel 64-bit DDR3 800-1066 SDRAM
            Maximum support to 8GB
 |
|
Expansion Slots
 |
1 * 32-bit PCI slot
            1 * Mini PCI-E (JBC200C85-35W-B: Equipped with Wi-Fi card)
 |
|
LAN
 |
1 * Realtek RTL8111E PCI-E LAN chip for Gigabit LAN
 |
|
Audio
 |
VIA VT1705 HD Audio CODEC with 6-Channel
 |
|
Storage
 |
4 * Serial ATA2 3Gb/s connectors
 |
|
USB
 |
Embedded 10 * USB 2.0/1.1
 |
|
BIOS
 |
AMI 16MB SPI Flash ROM
 |
|
Form Factor
 |
Mini-ITX Form Factor, M/B 170 x 170mm
 |
|
Barebones Specification
 |
|
Product size
 |
210(W) x 258(D) x 65(H)mm
 |
|
Specs Exposed
 |
1 x Slim ODD Drive Bay and 1 x 2.5” HDD Drive Bay (Only support SATA 2.5” HDD)
 |
|
Colors
 |
Black Color
 |
|
Cooling Fan
 |
Side: 6cm Fan SLEEVE x 1
 |
|
Front I/O Port
 |
2 x USB(V2.0)
            1 * Power button and 1 * HDD LED
 |
|

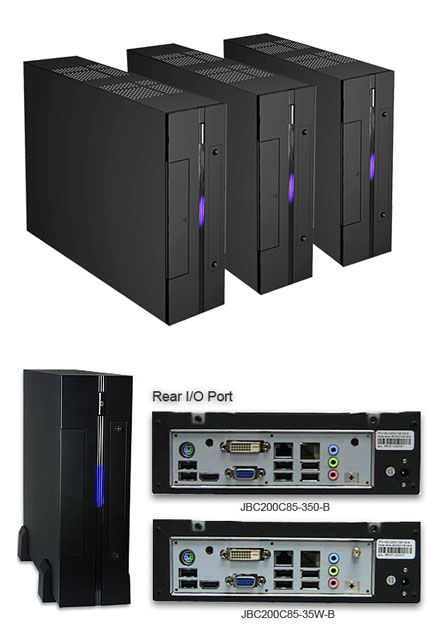

Rear I/O Port
 |
6 * USB 2.0/1.1 ports
            1 * PS2 KB/MS port
            1 * RJ-45 ports
            1 * Audio I/O port ( Line-in, MIC and Line-out )
            1 * VGA & DVI-D & HDMI port
            1 * Antenna Hole and 1 * 12V DC in
 |
|
Power supply
 |
12 V DC in
 |
|
Standard Accessory
 |
60W AC-DC Adapter x1 and Power Cord x1
            SATA Cable x 1
            Stand x 4
            Wi-Fi Antenna x1(Only JBC200C85-35W-B )
 |
|
Functional
 |
Set Top Box, Thin Client, Car Entertainment, Smart Mini PC, POS/POI, KIOSK
 |
|
Packing
 |
Color Box Dimension:417(W) x 137(D) x 296(H)mm
            Gross Weight:3.65KG
            Net Weight:3.02KG
 |
|
Certificate
 |
CE,FCC For Barebones
            CE,FCC,TUV,UL,CCC,CB For Power Adapter |
