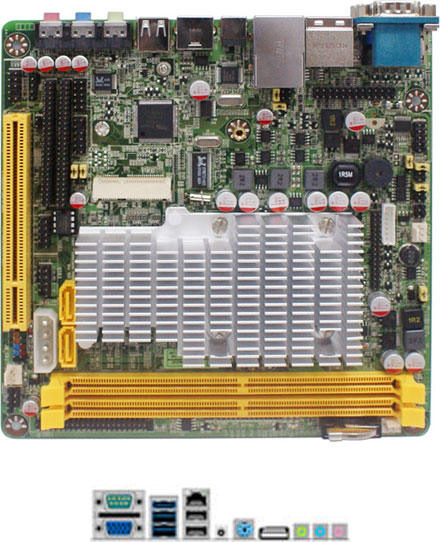

Jetway NF96FL-525-LF (Intel Pine Trail-D)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway NF96FL-525-LF (Intel Pine Trail-D)

  • INTEL® Atom Processor D510 / D525 + ICH8M Chipset
  • Support INTEL® Atom Processor D510 / D525(Dual Core) CPU Socket
  • Support Single Channel DDR2 800
  • Support CPU Smart FAN
  • Integrated LVDS support 18-bit TFT LCD
  • Supports 1x Gigabit LAN
  • Supports ACPI S3 Function
  • Support Watch dog Technology
  • Mini-ITX Form Factor(17cm x 17cm)

Product Accessories
- SATA power cable
- Manual
- CD
- 2x SATA cable
- I/O shield


Share

CPU INTEL® Atom Processor D510 / D525(Dual Core)
Chipset INTEL® Atom Processor  D510 / D525 + ICH8M Chipset Front Side Bus 667MHz
Memory 2 * DIMMs Sockets for un-buffered Single Channel DDR2 800/667 SDRAM up to 4 GB
Expansion Slots 1 * PCI slot 1 * MINI PCI-E
Storage Embedded INTEL ICH8M Chipset 3 * Serial ATA2 3Gb/s connectors 1 * Ultra DMA 100 / 66 IDE connector
Audio Realtek ALC662 6-Channel HD Audio CODEC
Ethernet LAN Realtek RTL8111DL PCI-E Gigabit Ethernet LAN
LVDS Onboard 18-bit single channel LVDS connector
USB Embedded 9 * USB 2.0/1.1
Special Features Support ACPI S3 Support CPU Smart FAN Support Watch Dog
Rear Panel I / O 5 * USB 2.0/1.1 ports 1 * PS2/KB Connector 1 * RJ-45 port 1 * COM port 1 * VGA port 1 * E-SATA Port 1 * 12V DC in 3 * Audio Phone Jack
Internal I / O 2 * USB 2.0/1.1 headers for 4 USB 2.0 ports 1 * JWDB pin Power connector CPU / NB / Chassis Fan connectors; 1 * 32-pin LVDS headers & 1 * GPIO header & 1 Parallel headers 1 * COM header ( COM1 for RS-422/485) 1 * AUDIO header
BIOS Award 8MB DIP Flash ROM
Functional ATM, Automation, medical Equipment, Security, Networking, POS, General Application, Gaming Machine, Transportation
Form Factor Mini ITX Form Factor(17cmx17cm)
Data sheet Download (PDF)
Data sheet Print view
Jetway Catalog (ARM) Download (PDF)
Jetway Catalog (Mainboards) Download (PDF)
Specifications [EN] Download (PDF)
