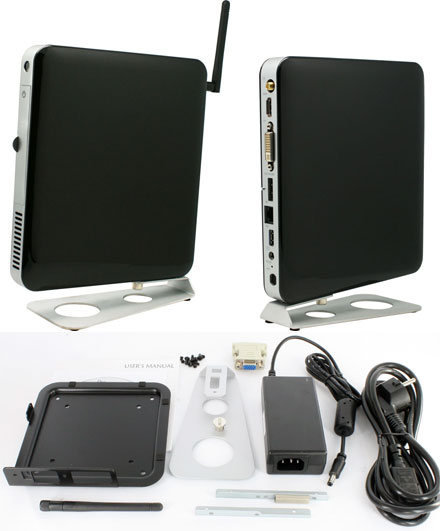

Jetway JBC621C86-E35D-BW (AMD Brazos Zacate 2x 1.6Ghz, WLAN, DirectX 11)

PRODUCT IS CURRENTLY NOT AVAILABLE !
Jetway JBC621C86-E35D-BW (AMD Brazos Zacate 2x 1.6Ghz, WLAN, DirectX 11)
3D 360° View
  • 1080p HD !
  • 2x 1.6 Ghz !
  • DirectX 11 !
  • AMD !

PC barebone (you need RAM+HDD/SSD for a full pc).

Because of its size (185 x 205 x 30 mm !) the system is perfect for these applications :
- POS
- Digital Signage
- Kiosk

Or use as attractive office-computer or server.

With a stabilized 12V adapter you also can use the barebone in a vehicle.





Share

CPU AMD Brazos Zacate E350D Dual core APU ( TDP:22W )
CPU Clock Speed: 1.6GHz
Radeon™ Brand : HD 6310 ( 492MHz )
Chipset AMD Hudson M1 Chipset
Audio VIA 1705 Audio CODEC
5.1 CH HD Audio with Content Protection
Support for S/PDIF Out
LAN Realtek Gigabit LAN
802.11b/g/n Mini-PCI-E Wi-Fi card
Internal drive - 1x 2.5" interner Schacht für SATA HDD/SSD
RAM 2 x SODIMM Sockets for un-buffered Single Channel 64-bit DDR3 800-1066
Max. capacity of system memory up to: 8GB
Power 12VDC
Power consumption 20W
Features - Integrated WLAN (802.11 b/g/n) with antenna [Atheros]
Front connectors - 1 x Power LED
- 1 x Power button
- 1 x MIC jack and 1 x headphone jack
- 2 x USB 2.0/1.1 ports
- 1 x card reader (SDC/MMC/MS)
Dimensions 185 x 205 x 30mm (HxWxD)
Rear connectors - 1 x WiFi Antenna connector
- 1 x HDMI port
- 1 x DVI-I port
- 1 x e-SATA(or USB2.0) port
- 1 x RJ-45 port
- 1 x USB 3.0 port
- 1 x 12V DC in
- 1 x TV tuner Antenna hole
Scope of supply - Jetway JBC621C86-E35D-BW Barebone
- DriverCD
- Quickstart-Guide
- AC/DC Adapter (100-240VAC, 12VDC/5A) + EU power cord
- DVI-DSUB-15 VGA Adapter
- Screws and 2.5" installation rails
- Stand
- WLAN antenna
Data sheet Download (PDF)
Data sheet Print view
