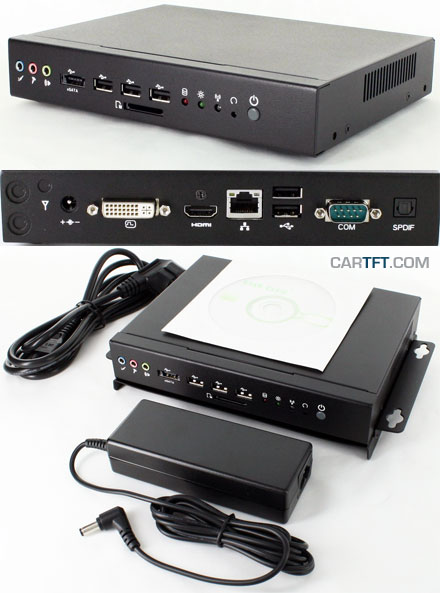

DSS-1200 Barebone (Intel Core i3/i5/i7 Mobile, eSATA, HDMI, 2x Mini-PCIe) [REFURBISHED]

PRODUCT IS CURRENTLY NOT AVAILABLE !
DSS-1200 Barebone (Intel Core i3/i5/i7 Mobile, eSATA, HDMI, 2x Mini-PCIe) <b>[REFURBISHED]</b>
3D 360° View
  • Small !
  • Fast !
  • Intel Core i3/i5/i7 Mobile !
  • Mini-PCI Express !

Remnant offer. Refurbished. Traces of usage / scratches on enclosure. 2 years warranty.

Because of its size (200 x 153 x 35 mm !) the system is perfect for these applications :
- POS
- Digital Signage
- Kiosk

Or use as attractive office-computer or server.

For a full PC you need in addition :
- Intel Core i3/i5/i7 Mobile CPU (PGA-988)
- SO-DDR-III RAM
- 2.5" HDD/SSD or CompactFlash

Features:
- Compact Size with Intel Calpella Platform
- Support Intel Core i3 / i5 / i7
- 2 x SO-DIMM DDR3 800/1066/1333 up to 8GB
- 1 x DVI-I, 1 x HDMI, 1 x GbE & 5.1 channel audi
[more]

Share

Remnant offer. Refurbished. Traces of usage / scratches on enclosure. 2 years warranty.

Because of its size (200 x 153 x 35 mm !) the system is perfect for these applications :
- POS
- Digital Signage
- Kiosk

Or use as attractive office-computer or server.

For a full PC you need in addition :
- Intel Core i3/i5/i7 Mobile CPU (PGA-988)
- SO-DDR-III RAM
- 2.5" HDD/SSD or CompactFlash

Features:
- Compact Size with Intel Calpella Platform
- Support Intel Core i3 / i5 / i7
- 2 x SO-DIMM DDR3 800/1066/1333 up to 8GB
- 1 x DVI-I, 1 x HDMI, 1 x GbE & 5.1 channel audio
- 1 x eSATA & USB Combo Connector
- 3-in-1 Card Reader and 5 x USB
- Optional WiFi or 3G Module

Dimensions / Weight 200mm W x 153.3mm D x 35mm H, 1.4kg
CPU Intel Core i3, i5, i7 mobile processors
Socket G (rPGA988A)
[i7-620M,i5-540M,i5-520M,i5-450M,i5-430M,i3-370M,i3-350M,i3-330M,P4500]
Chipset / FSB Intel HM55 Express
RAM 2x SO-DDR-3 RAM (up to 8GB 800/1066/1333)
Graphics Intel HD Graphics ( requires compatible CPU with built-in GPU )
Expansion - 2x Mini-PCIe (Half-size)
- 1x SIM card slot
OS Support Windows, Linux
Front I/O 3 x 3.5mm Phone Jack, support 5.1 channel audio output
1 x eSATA and USB 2.0 combo connector
3 x USB 2.0
1 x Power LED
1 x Storage status LED (HDD/Card Reader)
1 x WiFi status LED
1 x Reset Button
1 x Power Button
1x 3 in 1 Card Reader (SD / MMC / MS)
Drive bays 1 x 2.5" SATA HDD/SSD drive bay
Rear I/O 1 x DC JACK for DC12V single power input
1 x DVI-I for DVI-D or VGA output
1 x HDMI (V1.3 compatible)
1 x RJ-45 GbE port
2 x USB 2.0
1 x COM Port support RS-232/422/485 (offer +5V/+12V output selection)
2 x WiFi external antenna (optional)
1 x 3G external antenna (optional)
1 x S/PDIF Output
Scope of supply - DSS-1200 Barebone with mounting unit
- AC/DC Adapter + EU power cord
Data sheet Download (PDF)
Data sheet Print view
Device Specifications Download (PDF)
Drivers (Windows) Download
Please login for creating product ratings.
Your rating:

Please tell us your opinion. Rate the product on a scale from 1 to 5. A value of 5 means the best possible rating. If you want you also can leave a comment.

Your ratings are honored on many ways. Your report will help other customers to better judge about the products. And you can benefit from reports other customers are giving.

In addition we credit 0.50 EUR for each given rating with comment and 1.00 EUR for each given rating with comment (more than 150 characters) on your account. The credit will be substracted automatically on your next order !

We reserve us the right to delete given comments (for example on attempts to give comments with senseless content, copying of other comments, inserting of foreign content, abusing the system for financing orders). "Fair-use-policy" does apply (as of rule of thumb you should give comments for products which you have purchased already. And your credit account only in rare cases will have 2 or even 3 digits). The credit can only be withdrawn by placing an order. It is not possible to get the credit cash or transferred in an other way.

Customer ratings: 4 von 5 Sternen
Average rating, based on 1 ratings
4 von 5 Sternen from wilfverp am 20.02.2014 | | See all my comments

Was only able to do some first testing. But so far this device is doing what I expected from it.
