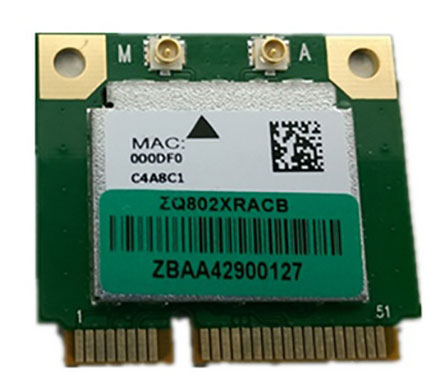

Wireless LAN / Bluetooth Mini-PCI Express [Qcom Combo ZQ802XRACB]

Wireless LAN / Bluetooth Mini-PCI Express [Qcom Combo ZQ802XRACB]
  • Half-Height Mini-PCIe
  • Long term available !
  • Realtek RTL8821AE !

Qcom WIFI+BT Combo Card 802.11 b/g/n/ac Wireless LAN and Bluetooth 4.0 + BLE Combo Half Mini Card

The ZQ802XRACB (successor model of Q802XKN3B) is designed to provide wireless LAN and Bluetooth function on a small form factor with PCI Express interface for wireless LAN and USB interface for Bluetooth to the host system.

Key Specifications/Special Features:

  • Combo module compatible with IEEE802.11 a/b/g/n/ac draft2.0 1T1Rand BT4.0 + BLE.
  • Complies with PCI express Base specification revision 1.1 for WLAN
  • Complies with USB1.1 specification for Bluetooth
  • PCIe LTR/OBFF/L1.Off state supported
  • 72.2Mbps receive PHY rate and 72.2 M [more]

    Share

34.95 EUR
incl. 19% VAT, plus shipping
In Stock (66 pcs)

5 von 5 Sternen
5 ratings
Add to cart

Qcom WIFI+BT Combo Card 802.11 b/g/n/ac Wireless LAN and Bluetooth 4.0 + BLE Combo Half Mini Card

The ZQ802XRACB (successor model of Q802XKN3B) is designed to provide wireless LAN and Bluetooth function on a small form factor with PCI Express interface for wireless LAN and USB interface for Bluetooth to the host system.

Key Specifications/Special Features:

  • Combo module compatible with IEEE802.11 a/b/g/n/ac draft2.0 1T1Rand BT4.0 + BLE.
  • Complies with PCI express Base specification revision 1.1 for WLAN
  • Complies with USB1.1 specification for Bluetooth
  • PCIe LTR/OBFF/L1.Off state supported
  • 72.2Mbps receive PHY rate and 72.2 Mbps transmit PHY rate using 20Mhz bandwidth
  • 150Mbps receive PHY rate and 150Mbps transmit PHY rate using 40MHz bandwidth
  • 433.3Mbps transmit/receive PHY rate using 80Mhz bandwidth
  • 802.11ac Draft 2.0 compatible WLAN
  • 802.11e QoS Enhancement(WMM)
  • 802.11i (WPA, WPA2)
  • Open, shared key, and pair-wise key authentication services
  • WAPI supported
  • Frame aggregation for increased MAC efficiency (A-MSDU, MPDU)
  • Low latency immediate High-Throughput Block Acknowledgement (HT-BA)
  • PHY-level spoofing to enhance legacy compatibility
  • Multi MAC ID support with Fast Channel switch
  • Channel management and co-existence
  • Transmit Opportunity (TXOP) Short Inter-Frame Space (SIFS)bursting for higher multimedia bandwidth
  • WiFi Direct supports wireless peer to peer applications
  • Supports Wake-On-Wlan via Magic Packets and Wake-up frames
  • Supports S3/S4 AES/TKIP group key update
  • Supports Win8 Network List Offload
  • CCA on secondary through RTS/ CTS handshake
  • Supports TCP/UDP/IP check sum offload
  • Integrated MCU to execute Bluetooth protocol stack

Data sheet Download (PDF)
Data sheet Print view
Device Specification Download (PDF)
Drivers (Windows) Download
