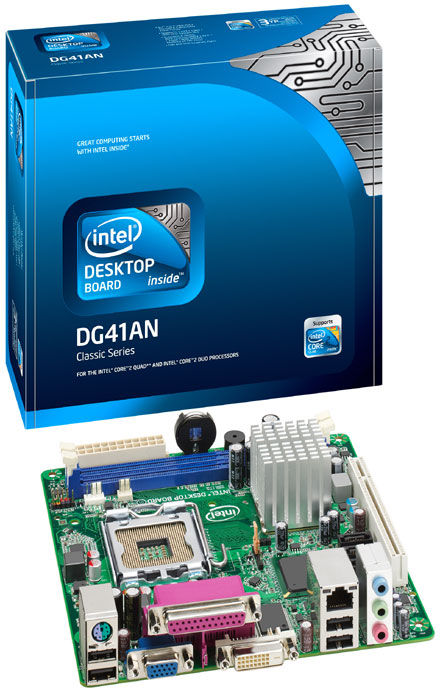

Intel DG41AN (for Core2Duo FSB1333 [Socket 775], DVI, DDR-3 RAM)
PRODUCT IS CURRENTLY NOT AVAILABLE !
The Intel DG41N ITX mainboard is the successing model of DG41MJ. The main difference is the support for DDR-3 RAM.
Enjoy great multitasking performance in a small form factor board with the Intel® Desktop Board DG41AN. It is designed to run with the latest Intel® Core™ processors in the LGA775 socket. This mini-ITX board comes with 2 DIMMs slots for DDR3 memory, eight back panel USB 2.0 ports, a PCI slot, serial header, parallel port & 6-channel audio. It is the best choice for an entry level mini-ITX board that supports the latest Intel® Core™ processors.
The Intel® Desktop Board DG41AN is Microsoft Windows Vista* Premium & Windows* 7 WHQL certi
[more]
CPU | Intel Core Duo @ 1333 FSB |
Graphics | Intel GMA X4500 |
Formfactor | ITX (17x17cm) |
RAM | 2x DDR-III 800/1066/1333 |
Audio | Realtek ALC888S5.1 |
Base | Intel ITX |
USB | 8x USB 2.0 |
Firewire | -- |
IDE/SATA | 3x SATA-II |
LAN | 1x 10/100/1000 |
Parallel | 1x |
Serial | 1x |
no | TV-Out |
yes | PCI |
no | Mini-PCI |
no | IDE |
yes | DVI |
yes | 800x480 Resolution |
no | Passive-Cooling |
no | PCI-Express |
no | PCMCIA |
yes | SATA |
yes | CPU changeable |
no | Compact Flash |
Compatible enclosures
M350 Mini-ITX enclosure
![](http://pca-3.de/image_db/cat_M350.jpg)
MHero-L-B Mini-ITX enclosure (1x PCI, Slimline ODD, 84W PSU)
![](http://pca-3.de/image_db/CAT_MHero-B.jpg)
MHero-L-R Mini-ITX enclosure (1x PCI, Slimline ODD, 84W PSU)
![](http://pca-3.de/image_db/CAT_MHero-R.jpg)
MHero-S-R Mini-ITX enclosure (with 84W PSU)
![](http://pca-3.de/image_db/CAT_MHero-S-R.jpg)
Hat alles was man braucht um sich einen überdimensionierten CAR-PC zu basteln. Auch der Stromverbrauch liegt im Rahmen wenn die CPU nicht ständig auf 2x100% läuft. Soundkarte hab ich allerdings deaktiviert, da ich ´nen externe 8-Kanal Lösung eingebaut hab (für vier getrennte Zonen). Gegen meine Erwartung hab ich keine Temperaturprobleme.
